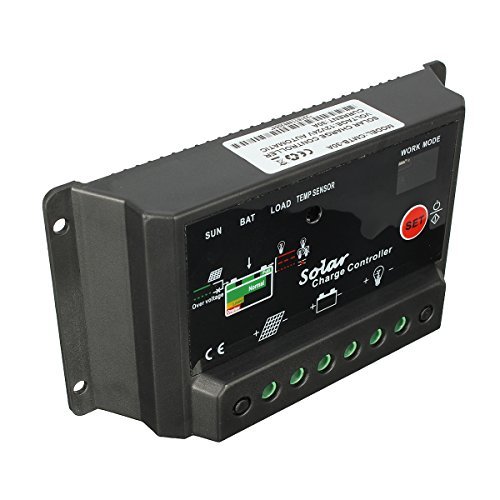

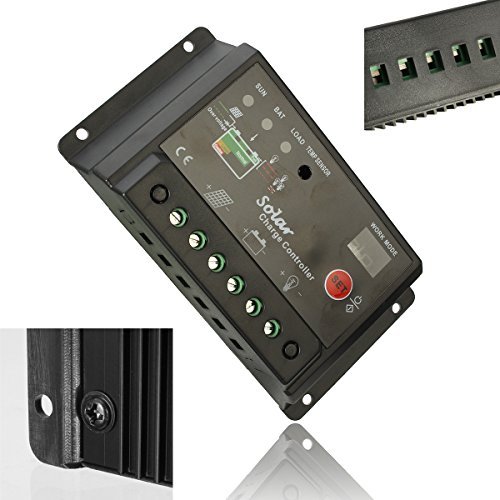

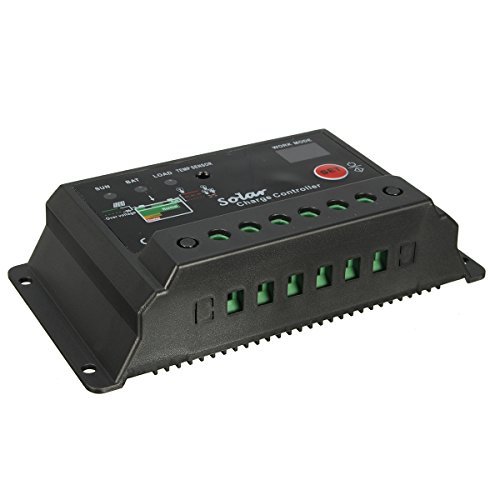

MOHOO 30A Solar Charge Controller 12V/24V Intelligent PWM Solar Panel Charge Controller Battery Regulator
by people ...
Product Specifications

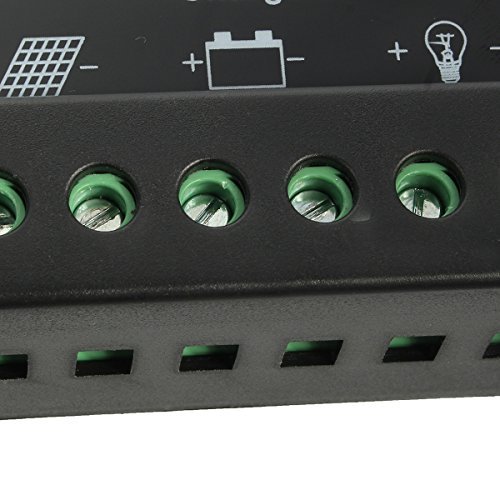

- Caution:Controller should connect the battery first,and then connect the solar panel,and finally the load!The disassembly sequence is contrary to the wiring order !
- Temperature compensation: -4.0 MV/℃2V (boost voltage direct charge, float charge and charge return voltage compensation)
- Control method: PWM pulse-duration modulation charge mode
- Work voltage: 12V/24V AUTO
No load losses current: 5mA-20mA (only when digital LEDs being lighted)
Product Description

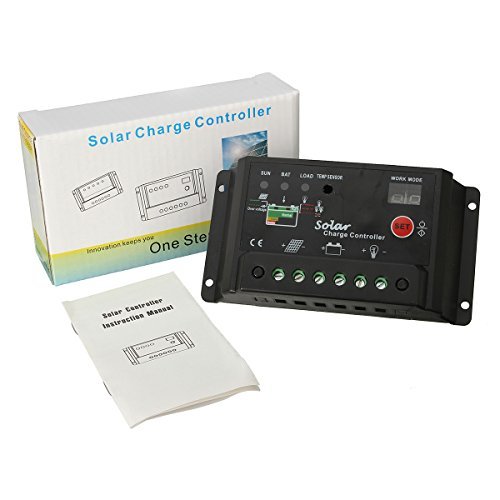

Color:30A Specifications: Rated charge current: 30A Rated load current: 30A Work voltage: 12V/24V AUTO No load losses current: 5mA-20mA (only when digital LEDs being lighted) Charging circuit voltage drop: =0.26V Load circuit voltage drop: =0.15V Over voltage protection: 14.8V; x2/24V Boost charge voltage: 14.6V; x2/24V Direct charge voltage: 14.4V; x2/24V Float charge voltage: 13.6V; x2/24V Charge recover voltage: 13.2V; x2/24V Over discharge recover voltage: 12.6V; x2/24V Lower voltage indication: 12.0V; x2/24V Over discharge voltage: 11.1V; x2/24V (no load) real-time modified voltage by the discharge rate Temperature compensation: -4.0 MV/? 2V (boost voltage direct charge, float charge and charge return voltage compensation) Color: black Package Includes: 1*Digital PWM 30A Solar Charge Controller 1*User Manual
Product Reviews
Works good, but Horrible instructions!
It does what it’s supposed to do and properly regulates voltage to the battery. But the instructions I think we’re translated from Chinese to English with a computer, and I still haven’t been able to understand them fully. But I figured them out enough to get it to work.First, BE SURE TO HOOK UP LEADS TO THE BATTERY FIRST, THEN THE SOLAR PANEL NEXT! This is mentioned in the description of the unit when you bought it. Don’t ask me what will happen if you don’t do that, but I suspect bad things will happen.Then hold down the mode button until a number starts flashing and keep pushing until it lands on a work mode you want. I just left mine on 16 for general work load, on all the time, and it works.Honestly, it would be so much nicer if a “quick start guide” with illustrations anyone could understand we’re included. We’re that the case, I would have given it 5 stars as it’s very reasonably priced and seems to work fine.
I like it
I really like this. I set it up to keep a small battery for light.Safely does what it’s supposed to do.
… connected 6 panels to it and the controller works great when the charge gets to 14
The item came right away I connected 6 panels to it and the controller works great when the charge gets to 14.1 it stops charging.
MOHOO 30A Charge Controller 12V/24V Intelligent PWM Solar Panel Charge Controller Battery Regulator This product …
MOHOO 30A Charge Controller 12V/24V Intelligent PWM Solar Panel Charge Controller Battery RegulatorThis product does not work. Yesterday install all and the only one that did not work is the one mentioned.It does not turn on
Two Stars
Too much resistance.
Four Stars
WORKING GOOD
Horrible, instructions were translated from chinese to english poorly
comments powered by DisqusHorrible, instructions were translated from chinese to english poorly. It will not kick over to battery power after solar shuts off. All it does is charge my batteries. Whats the point if i have to manualy turn on batteries at night.
